BAA Tutorials Intermediate

Filters for visual observing of the Moon and planets


If you are new to astronomy and wish to see as much detail as possible on the planets of the solar system, or even if one has been observing solar system objects for some time, it may come as a surprise to find that coloured filters can make a world of difference to your observing clarity. Using filters can revolutionize your observing as coloured filters bring out additional detail from the subtle shadings found on solar system objects. This tutorial builds on the excellent tutorial by Paul G. Abel, and looks in more depth at the filters most commonly used by visual observers of solar system objects.

Many astronomical suppliers provide these filters, and all filters are identified firstly by their colour, and secondly by particular numbers or a # which are known as Wratten numbers. These allow the observer to choose which parts of the spectrum they are going to enhance in order to make planetary and lunar definition stand out. The principle of the filters come from black and white photography in which complementary or “opposite” colours enhance the contrast visible. When juxtaposed, complementary colours make each colour seem more vivid and defined, enabling particular coloured features to stand out against the background hues. So, a red or orange filter will enhance blue features and a blue filter will enhance red features.

The Wratten system was developed in Britain in the early 20th century by Frederick Wratten and Kenneth Mees who founded a company in 1906 that produced gelatin solutions for photography. Mees then developed gelatin filters dyed with tartrazine to produce a yellow filter, but soon developed other colours and a panchromatic process of photography. In 1912 they sold the company to the American company Kodak, with their British offices at Harrow in England and Mees moved to New York to found the Eastman-Kodak laboratories there. In honour of his partner and mentor, Kenneth Mees named the burgeoning number of coloured filters “Wratten” and introduced the complex numbering system that is still in use today. Not all the Wratten filters are suitable for astronomical use, but the main colours are still widely used in visual astronomy and are detailed in this tutorial.

These coloured filters are known as broadband or “longpass” in that they allow a wide range of wavelengths through but block wavelengths above or below a certain point in the electromagnetic spectrum. As the spectrum of visible light lies between 390 and 700 nanometers (nm), with the blue wavelengths being the shortest (~400nm) and the red being the longest (~700nm). Anything with a wavelength range above or below a particular filter will be blocked and increased contrast in compensating colours will be noticed.

Most astronomical suppliers sell complete sets of filters for solar system observing and naturally such sets are known as lunar and planetary filters. They generally have a range from red to blue across the spectrum and cover the broad bandwidths associated with such colours. A typical set will include a neutral density filter for lunar observing and a No. 25 red, No.12 yellow and No. 80A blue for as full coverage as possible. A typical filter set is shown here in figure 1. A more extensive set of astronomical filters with typical Wratten numbers can be seen here in figure 2.

This tutorial will introduce each filter and instruct the reader on which targets in the solar system each filter can be used and what features the filters will enhance Keep in mind that visual acuity does vary from observer to observer and that in the dark the sensitivity of the human eye shifts to the blue end of the spectrum. This is due to a phenomenon known as the Purkinje effect, named after the Czech doctor who discovered that the spectral sensitivity of the human eye does not enable red light to be seen clearly in the dark, but shorter blue wavelengths are detected.

Technical aspects of Filters
Filters can be separated into a few main groups that enable enhancement, lessened contrast or can be used for colour shift or balance. Colour subtraction filters work by absorbing certain colours of light, letting the remaining colours through. They can be used to demonstrate the primary colours that make up an image or can be seen in the features of our planetary neighbours. A colour correction filter makes a scene appear more natural by simulating the mix of colour temperatures that occur naturally, and subtly enhancing the middle ranges of the spectrum.

In addition to these filters, there are also colour temperature filters. Some filters change the correlated colour temperature of a light source. They can change the appearance of light from a bright white source so that it looks more yellow and natural to the eye. The term colour temperature comes from the natural phenomenon of coloured light emitted by warm objects. Warm objects, such as a flame from a fire, emit deep red and orange light. The temperature of such flames are roughly 1500K. If you increase that temperature the light emitted begins to look more blue as its wavelength changes to the shorter (hotter) or blue end of the spectrum.

Of course, optical filters don’t really change the temperature of the object emitting the light. Colour temperature filters simply remove some of the light of wavelengths of our choosing so we can absorb or reflect away some of the orange and red light emitted by the planets. This makes the remaining light look more blue and therefore has a higher colour temperature. Conversely, some filters can remove some of the blue light emitted by a planet, making the remaining light look more orange and thus apparently emitting a lower colour temperature.

Wratten filters and their uses
In the following tutorial, I have grouped the filters under their colour designation rather than put them in number order, as the colour of each filter is their most obvious feature when using them. All of these filters are available to purchase in 37.1mm (1.25”) or 50mm (2”) fittings and are commonly available from astronomical suppliers. For a fuller description of Wratten filters, please follow this link: In this tutorial, only those filters useful to astronomers will be described.

One question commonly asked is "do filters block out too much light and make observing more difficult or less enjoyable?" It is true that filters do block out some light, but I hope you will see from this tutorial that by selectively blocking out certain wavelengths of light, and by altering the contrast of any surface features, the observer is often able to resolve finer or more subtle detail. In fact, in the case of bright objects the reduction in light transmission is an advantage. Let us examine this a little more technically.

The difference in contrast between the belts and zones on an object such as Jupiter can be so small that the human eye and brain just smear the whole and it can be difficult to discern details without a filtered system. Because Jupiter is a very bright object seen against a dark background, the differences in intensity of reflected light from light/dark zones on such planets is not really seen to advantage by the human eye.

Contrast in any system can be measured using the formula:

C = (b2 - b1) ÷ b2

Where C is the contrast and b1 and b2 are different areas of brightness on the surface of a planet. Bright areas on Jupiter have an intensity of 6 lumens  m-2 and the intensity of the darker zones have an intensity of 3 lumens m-2. This would give:

(6 – 3) ÷ 6 = 0.5

or a visual contrast 50% lower in the darker zones than in the brighter zones. A filter will enhance the contrast by permitting wavelengths representative of the redder or darker zones through whilst diminishing the blue contrast on the brighter zones. Surely a filter that would aid in the perception of subtle features is going to be a bonus to any observer?

This tutorial will convincingly show that the use of filters, despite their decrease in light transmission is actually very useful in visual astronomy. The use of filters assists primarily in enhancing contrast initially and although the reduction in light transmission is generally not favoured in astronomy, this is one area in which this general rule need not apply.

No. 25 Red
The No. 25 filter reduces blue and green wavelengths, which when used on Jupiter or Saturn, result in well-defined contrast between some cloud formations and the lighter surface features of these gas giants. However, it needs to be used judiciously as the light transmission is only 15% but for such bright planets this filter will enhance the observed detail even when used with small telescopes. This filter blocks light shorter than 580nm wavelength. This filter is also sometimes referred to as a Wratten 25A.

No. 23A Light Red
This is a good filter for use on Mars, Jupiter, and Saturn, and has proved useful for daylight observations of Venus as it has a 25% light transmission. The light red is an “opposite” colour to blue and therefore darkens the sky very effectively in daylight. Some astronomers report that it also works well on Mercury, but I would not recommend viewing this planet in general during daylight due to its proximity to the Sun. This filter blocks wavelengths of light shorter than 550nm.

No. 21 Orange
This orange filter reduces the transmission of blue and green wavelengths and increases contrast between red, yellow and orange areas on planets such as Jupiter, Saturn and Mars. It brings out the glories of the Great Red Spot on Jupiter very well under conditions of good seeing with a medium magnification (e.g. x100). It also blocks some glare from the bright planet and provides less of a contrast between a planet and the black background of space. A good all round planetary filter as it transmits about 50% of the light and blocks wavelengths short of 530nm.

No. 8 Light Yellow
This filter can be used for enhancing details in red and orange features in the belts of Jupiter. It is also useful in increasing the contrast on the surface of Mars, and can under good sky conditions aid the visual resolution on Uranus and Neptune in telescopes of 250mm of aperture or larger. The No. 8 cuts down glare from the Moon and works much better than the “moon filters” included with some cheaper telescopes. This filter allows 80% of the light through but blocks light short of 465nm.

No. 12 Yellow
This filter works on the principle of opposites described above, blocking the light in the blue and green region and making red and orange features on Jupiter and Saturn stand out clearly. Deeper in colour than the No. 8 filter, it is the filter most astronomers recommend for visual work on the gas giants. It has a 70% light transmission and cancels some of the glare on Jupiter when seen against a dark background sky. It blocks visible wavelengths short of 500nm.

No. 15 Deep Yellow
This filter can be used to bring out Martian surface features, especially the polar caps and can be used to bring out detail in the red areas of Jupiter and Saturn. Some astronomers also have reported some success using this filter to see low-contrast detail on Venus. I have used this filter on Venus during the day to add more contrast to the image and it generally works well. This filter is particularly useful for visual observations of Venus as it is a very bright object and the filter can considerably reduce the glare of this very bright planet in evening or morning apparitions despite its 65% light transmission. The No 15 blocks light short of 500nm.

Although at this point it may feel like every filter suits Jupiter and Saturn, the variegated nature of their surfaces and their extreme brightness at opposition or during favourable apparitions enables a wide range of filters to bring out different details. Some of the details may be subtle, but can be explored better by an experienced observer equipped with a range of filters.

No. 11 Yellow-Green
This darker filter is a good choice to enable the observer to directly see surface details on Jupiter and Saturn. It can also be useful on Mars if you are using a large aperture telescope in the 250mm range. At times of steady atmospheric seeing, this filter darkens the surface features and makes areas such as Acidalia and Syrtis Major stand out and the polar caps and occasional features such as clouds appear quite marked. The No. 11 filter allows 75% light transmission can be used to darken some features on the Moon.

No. 56 Light Green
I have used this filter for observing the ice caps of Mars during its close encounter in 2003 and found that despite the low altitude of Mars from the UK during that apparition the filter worked well in bringing out these features and even hinted at rocky features on the planet’s surface during periods of clear seeing. I have to admit that the orange No 21 filter did work surprisingly well in rendering colour and detail on the red planet, but the contrast with the No 56 filter was quite good. This filter allows most wavelengths through but does have a peak around 500nm.

With its 50% light transmission this filter is a favourite of lunar observers as it increases the contrast while reducing the glare. It is also a filter that is well tuned to the wavelengths of the human eye and the greenish cast can almost be ignored during visual observation. This is a colour correction filter with all wavelengths equally affected. The effect can be seen on the first quarter moon in figure 3 photographed here in ordinary white light and then through the Wratten No 56 filter.

No. 58 Green
This filter blocks red and blue wavelengths of light and many observers find that it slightly increases contrast on the lighter parts of the surface of Jupiter. I have also used it on Venus where it does add to the contrast and reduces glare a little but it must be admitted that it is not easy to visualize any detail in the clouds.

The No 58 filter has a 25% light transmission, and it is a colour correction filter rather than a longpass. Such filters alter the colour temperature of the incoming light, enhancing contrasting colours in the object by allowing specific wavelengths through that correspond to the temperature of the light. This is a complex subject but to put it simply, the colour of light not only corresponds to particular wavelengths but also to particular colours where blue is cooler and red is hotter. Note that this is more of a perception than anything else as in reality blue light is “hotter” (has a higher frequency and shorter wavelength) than red light.

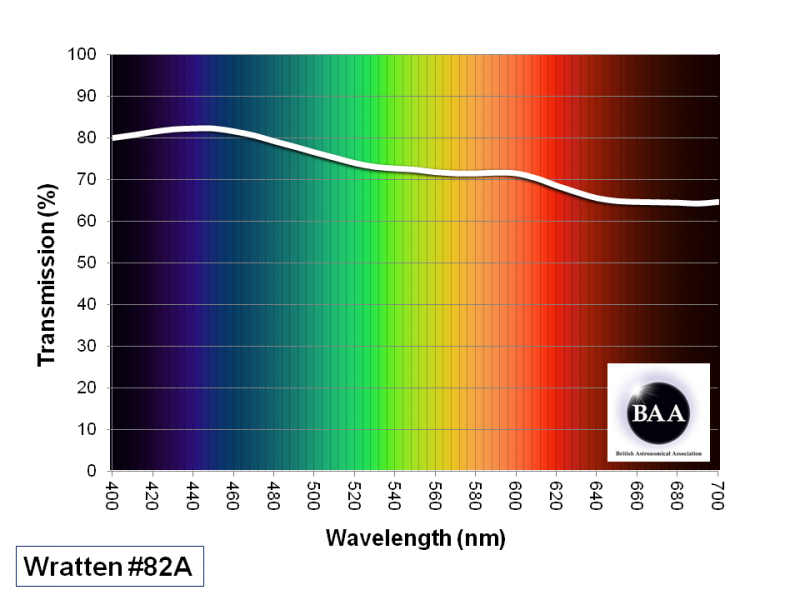

No. 82A Light Blue
This is almost a multipurpose filter as it does enhance some features on Jupiter, Mars and Saturn and also works very well in enhancing some features on the Moon (figure 4). It is commonly referred to as a “warming” filter that increases the colour temperature slightly and allows the red wavelengths through due to the complementary colours that we discussed above. With a light transmission of 75% it can be used on any aperture telescope and can even make some difference to deep sky objects such as M42 and M8 though the effects can be quite subtle.

No. 80A Blue
Although this is quite a dark filter, it is as versatile as the No 82A in that it enhances features in the red on planets such as Jupiter, Saturn and Mars. It is also good for lunar observation as it reduces the glare and provides good contrast for some features such as ejecta blankets, ray systems and lava fronts. Some astronomers report success in its use on binary star systems with red components such as Antares and α Herculis as the contrast enables the observer to split the two components well. The No. 80A filter has a 30% light transmission and also acts as a colour conversion filter enhancing wavelengths around 500nm.

No. 38A Dark Blue
Again, a good filter to use on a planet such as Jupiter because it blocks red and orange wavelengths in such features as the belts and in the Great Red Spot. Some astronomers report that it also adds contrast to Martian surface phenomena, such as dust storms, and makes a better contrast for observing the rings of Saturn. Try using it for observations of Venus as some report that using this filter increases the contrast, leading to the visual observation of some dusky cloud features. This filter has about a 15% light transmission. It absorbs red, green and UV light and is commonly referred to as a minus green, plus blue filter. The difference can be gauged in figure 5.

No. 47 Violet
A very dark filter which strongly blocks the red, yellow, and green wavelengths. I would highly recommend it for Venus observation due to its low light transmission of about 5% providing great contrast and enhancing cloud features. Try using it on the Moon to decrease the glare when observing features at a 10-12 day old phase. Some observers report that features in the Schroeter Valley and Aristarchus crater are clearer due to the lack of glare. Recommended for the Moon, especially if you are using a large aperture telescope! This is another colour separation filter that enhances the blue or shorter wavelengths of the spectrum at 450nm.

Additional filters that also are helpful in visual observing are the polarizing filter and the neutral density filter. Both are longpass filters that usually transmit all wavelengths of light but can cut down on glare and contrast.

Non Wratten Filters
Neutral Density Filters
A neutral density (ND) filter transmits light uniformly across the entire visible spectrum and is an excellent filter to use to reduce glare in such objects as the Moon and planets, but especially the Moon. Due to its bright glare many lunar and planetary astronomers keep an ND filter on their favourite eyepiece and add on other filters as necessary. Neutral density filters come in a variety of densities that reduce the glare in the image based upon the amount of light transmission each ND filter allows. Commonly they come in numbers such as 50, 25 and 13 that signify the amount of light they transmit; 50%, 25% or 13%.

Polarizing filters
Although it does not work at any specific wavelength, the polarizing filter allows light of any wavelength through but blocks those with random scattering patterns allowing only light waves in a flat “plane” through, which has the effect of increasing the contrast, reducing glare and slightly enhancing the saturation of colour in an object. Such filters are very useful on bright objects such as the Moon and some planets.

Neodymium Filter
The Neodymium filter is an interesting addition to the filter armoury as it filters the yellow light of the spectrum, rendering most objects a faint blue colour. It is useful for observations of Venus and for Jupiter and Saturn too. Some astronomers report that this is a useful filter for observing in light polluted areas as it cuts through sodium light pollution somewhat, although it is not as effective as a Light Pollution Reduction filter.


Many planetary observers rely on filters and they report that they really do make a difference in seeing faint details. Filters also reduce the glare of objects like Jupiter, Saturn and the Moon and render a better contrast between their sunlit surface and the dark background sky.

Observers can also be affected by a phenomenon known as prismatic or atmospheric dispersion. This is most evident when a star or planet is seen near the horizon. It results from atmospheric refraction occurring less for the longer wavelength red light where the red appears clearer nearer the horizon and the light shifts to the violet toward the zenith. This is the reason that most astronomers prefer to observe an object when it is near or at culmination (the highest point in the sky as seen from an observers latitude) so that this effect is lessened. Use of red or blue filters on an ascending object may make the difference between seeing details such as the Great Red Spot for example.

I hope that this tutorial shows that coloured filters are a very useful tool in visual astronomy. Using such, I hope that this tutorial gives the reader some tips on which filters to use to observe any of the planets of the solar system and our moon. Most features on planetary surfaces may be quite subtle and filters can make a great difference between seeing or recording a feature or missing it completely in the sky background. For more information on using filters for visual observing or for astrophotography, please see my book Choosing and Using Astronomical Filters.

Martin Griffiths

Martin is the Director of the Brecon Beacons Observatory and an astronomer at Dark Sky Wales

[The graphical plots in this tutorial have been prepared using copyright free spectroscopic data]

Like This Article
BAA Observing Sections Comet

Comet 21P approaches the North America Nebula

It will be a challenging observation due to midsummer skies and a First Quarter Moon but the periodic comet 21P/Giacobini-Zinner will be passing the bright emission nebula NGC7000 (the North America Nebula) in Cygnus between June 19 and June 21. The comet is currently around 13th magnitude but will brighten over the summer to become a potentially 6th magnitude object by September. At present the comet is a small fuzzy spot with a short tail to the south west and it will be completely overwhelmed by the large nebula but it will be interesting to compare the two objects. A chart showing the encounter is here. Please send any observations to the Comet Section.

The image at left shows the comet on the morning of 2018 June 13. The field of view is around 11 arcmin square. More images of this comet are available in the Section's archive here.

Update on 2018-06-18 - Here is an image of the comet approaching the nebula taken from New Mexico.

Like This Article
BAA Tutorials Starting out

Noctilucent Clouds – a beginners guide

Noctilucent clouds (popularly referred to by the abbreviation “NLC”) are high atmosphere clouds which occur over summertime at mid latitude locations. They form at very high altitudes – around 82 km above sea level – and are, thus, a quite separate phenomena from normal weather or tropospheric cloud. They appear as thin streaks of “cloud”, often a pearly-blue colour, reminiscent of “mares-tail” cirrus cloud formations.

NLCs can be seen from around mid May to early August during the darkest part of a summer’s night when the Sun is between 6 – 16 degrees below the horizon. Typically, they will occupy the northern horizon, along the twilight arch, extending to an altitude of 10 – 15 degrees. Over the NLC “season” the bright star Capella dominates this part of the sky and serves as a good marker for the NLC observer. They used to be associated with northern UK but have been seen as far south as central France and they seem to be spreading further south with each season.

Observations of NLC remain of great value to professional scientists studying upper-atmosphere phenomena. Useful observations are very easy to make and require no special equipment.

The following information lists the important details you should include in your report:

LOCATION: Give the latitude and longitude of the place observations were made. Alternatively, give the name of the nearest town or city.
DATE: Use the “double-date” convention as used in reporting aurorae. That is, “June 21-22″ would refer to the night of the 21st and the early hours of the 22nd.
TIME: Try to use universal time (UT) even though British Summer Time (BST) will be in civil use for UK observers. Remember, UT = GMT = (BST – 1 hour).

The following features and details should be recorded at 15 minute intervals (i.e. on the hour, quarter past, half past and so on):

AZIMUTHS If you see NLC measure the left (western) and right hand (eastern) extent of the display. This is measured in degrees with west = 270, north = 000, east = 90 and south = 180. Polaris defines the northern point of your horizon. Azimuths can be gauged by using a clenched fist, held at arms length, as a measure of 10 degrees.
ELEVATION If possible, measure the angle subtended by the uppermost part of the display. A simple alidade can be made from a protractor and plumb line for this purpose.
BRIGHTNESS NLC brightness is measured on a three point scale with 1 = faint; 2 = moderate; 3 = very bright.

NLC forms are classified into 5 easily identified structures. Any combination of the following is possible:

Type 1: Veil – A simple structureless sheet, sometimes as background to other forms.
Type 2: Bands – Lines or streaks, parallel or crossing at small angles.
Type 3: Waves – Fine herring-bone structure like the sand ripples on a beach at low tide. Very characteristic of NLC.
Type 4: Whirls – Large-scale looped or twisted structures.
Type 5: Amorphous – Isolated patches of NLC with no definite structure.

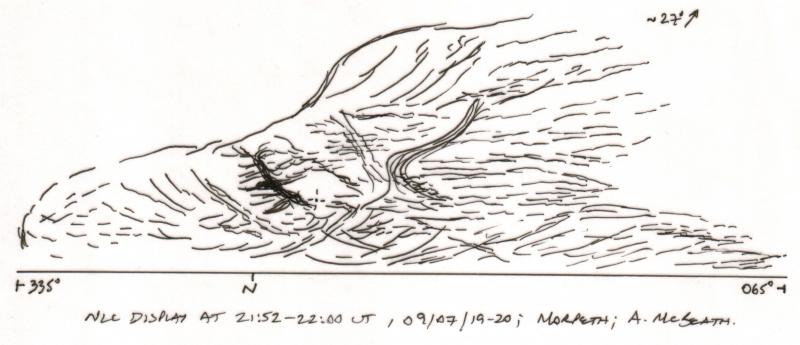

Simple sketches of the NLC can be very useful. These are best made in negative form with the darker parts of the sketch corresponding to the brighter NLC.

Photographs of NLC can easily be taken with a digital camera firmly fixed to a tripod; using 400 ISO gives good results. An exposure of 3-6 seconds with a lens aperture setting of f3.4 will normally suffice. However, it is always best to take several shots of different exposures, and pick the best exposure. Once this is done you can try a panorama by taking several overlapping photos. Make sure the camera is level, then move it about 20 degrees after each shot, starting just beyond one end. This makes sure that you will get it all, because the camera will see more than you can.

Sandra Brantingham

Sandra is the Director of the Aurora and Noctilucent Cloud Section of the BAA.

A selection of observatorions of noctilucent clouds which BAA members have uploaded to their Member pages can be found here.

[Thumbnail image by Gordon Mackie]

Like This Article
BAA Tutorials Starting out

Imaging comets: an introduction

(Note: this tutorial is an abridged section of the British Astronomical Association's Comet Observing Guide, which is the work of several people over a long period and is a continually evolving document.)


On September 27 1858 an English photographer called William Usherwood obtained the first ever photograph of a comet. He used an f/2.4 portrait lens and a seven second exposure on a collodion photographic plate. The resulting image of Comet 1858 VI Donati showed the bright nucleus and a faint tail and the photographer was sufficiently excited to send a copy to a leading astronomer of the time, Richard Carrington. Sadly the photograph no longer survives, but we can at least get an impression of this spectacular comet through a contemporaneous painting by William Turner (Fig. 1).

In 1858 photography was in its infancy and photographic plates were extremely slow with exposures of several seconds required to capture pictures even in daylight. Photography developed dramatically through the twentieth century only to be gradually replaced by digital imaging in the 1990s. These days, with the exception of light pollution, comet imagers are living in a golden age of large, sensitive, relatively inexpensive digital imaging sensors.

The following article, extracted from the comprehensive Comet Observing Guide, discusses the fundamentals of comet imaging. Subsequent articles will cover particular techniques in depth.

Most comets are faint, low-contrast, objects with diffuse tails or coma features which merge gradually into the sky background. Consequently, imaging a comet requires techniques similar to those used by deep sky photographers, though we have the added complication that comets move relative to the background stars. Since the techniques are so similar, you can use a suitable deep sky object to practice on if a comet isn’t currently available.


The days of film are now long gone and the vast majority of astronomical imaging is done with digital sensors. These sensors consist of an array of light-sensitive detectors called pixels which convert incoming photons to electrical charge. When the sensor is read out at the end of an exposure the charge in each pixel is measured and stored as an array of numbers in an image file. The number of grey levels represented by the pixel values ranges from 8-bit (256 levels) for some low-end cameras to 12 or 14-bits for DSLRs to 16-bits or more for scientific cameras. A 16-bit word can represent 216 = 65536 grey levels which is far more than the human eye can distinguish or any monitor can display but this large number of grey levels is important when we come to calibrate and stretch the very subtle detail visible in a comet.

The pixels represent shades of grey. For colour images we need to use filters in front of the pixels to isolate the red, green and blue components of the image. This can be achieved using separate filters in a filter-wheel which are used sequentially to obtain individual greyscale images that allow a colour image to be generated later. Alternatively the filters can be built in to the sensor so that red, green and blue filters are placed over adjacent pixels and a colour image is obtained by processing a single grey-scale image. A popular arrangement is the Bayer matrix where each group of 2×2 pixels has one red, one blue and two green filters. This has the advantage that a colour image can be taken in one shot but the disadvantages of reduced sensitivity and resolution.

Cameras used for comet imaging fall into two general categories. These are specialised scientific cameras which are designed for astronomy and which have cooled sensors and commercial designs such as Digital Single Lens Reflex (DSLR) cameras which are designed for the (much larger) general market and which do not have cooled sensors.  For any given image sensor size (Fig. 2) the former are generally much more expensive than the latter but they can give much better results. That said, DSLRs and other modern digital cameras are remarkably capable and have been used to produce spectacular images of bright comets. Higher end DSLRs use a sensor which corresponds to the frame size of 35mm film (36×24mm). These full-frame cameras can be quite expensive and heavy. The majority of consumer DSLR cameras use a sensor around 2/3 the size of full-frame cameras (approx 24×16 mm). This is often referred to as the APS-C format.

While DSLRs can be very effective the highest sensitivity is provided by specialised astronomical cooled cameras. For any given sensor area these are generally a lot more expensive than commercial DSLRs and they usually require an external power supply and computer for operation but they do perform far better on faint objects. Larger sensor sizes are now available and more recent cooled cameras can be very affordable.

Wide-field imaging

In addition to the light-sensitive element any camera system must also include an optical arrangement to bring an image into focus on the detector. Comets range from faint, small objects that need to be imaged using a telescope to much brighter objects that need a wide field imaging system. Standard photographic lenses can make a very capable bright comet imaging system.

Since comets are extended objects their apparent brightness on the image sensor will depend on the focal ratio of the optical system (assuming that the focal length of the system is large enough that the comet is shown as a fuzzy, extended object on the image). The faster the optical system (i.e. the smaller the f/ratio) the better. Most comets are small and so quite long focal length lenses are required for good results. The combination of long focal length and fast f-ratio can be an expensive one, however the modern demand for high-tech image-stabilized, auto-focus zoom lenses means that good, fast, fixed focal length lenses can often be found second hand at a good price.

Most lenses will have a relatively poor optical performance when used at their widest aperture. If you are using a sidereal drive it may be worth closing the iris by one stop to improve the optical performance and extending the exposure to compensate. An alternative is to pay a high price for a lens which performs well when used wide open. The pictures of C/1996 B2 Hyakutake shown in Figure 3 were obtained using a Canon 85mm, f/1.2L aspheric lens. This type of lens has a very good performance when used wide open, even at the edge of the field. Such lenses are very expensive new but second hand versions using the Canon FD mount can be picked up for £650. Such a lens would make a superb imaging sensor when coupled to a modern sensor. Similar lenses are available from various manufacturers but they are seldom justified by comet photography alone.

To get sharp star images the lens should be focused to infinity but you may find that the infinity mark on the lens isn’t actually the best focus point and some experimentation will be required. This is particularly true with long focal length mirror lenses which often have no stop at the infinity point. Since different wavelengths of light are brought to focus at different points the infinity focus mark usually only applies to light in the visible range. Many CCDs are sensitive well into the infra-red and it is often necessary to employ an infra-red blocking filter to get sharp star images. One advantage of modern DSLRs is that it is possible to display a zoomed-up image live on the screen and this is a significant aid to precise focusing.

An ideal lens would provide even illumination over the entire focal plane so that the sky background would produce a uniform density on the film or CCD detector. Real lenses do not achieve this and the amount of light reaching the edge of the detector is less than the amount received by the centre. If this vignetting effect is not corrected it will lead to an uneven background in the final print. This is particularly troublesome in the case of a large, low contrast object such as a comet’s tail since detail will be lost when you try to stretch the final image with a high contrast. The effects of vignetting can be eliminated by good flat fielding.

Since comets are best observed from dark sky locations and are often at their best near the horizon many people will need a portable imaging setup. Many, high quality tracking mounts are now available. For particularly bright comets air travel overseas is worthwhile so equipment must be light enough to carry onboard an aircraft. An example is the Sky Watcher Star Adventurer mount but other equivalent types are available.

Remote observing

A significant advance in amateur astronomy in recent years has been the setting up and use of remotely operated or robotic telescopes. Use of such facilities is not expensive, especially when compared with the cost of setting up one’s own observatory from scratch. All the sky, not just the hemisphere in which you are located, is available to robotic telescope users and not necessarily in the middle of a cold night. Unfortunately, UK-based observers are often at a disadvantage because of poor weather, light pollution in towns and cities, or because of our latitude (50°–56° N), which prevents access to many celestial phenomena further south, and also means that our summer nights are very short. Figure 4 is an image of C/2018 Y1 (Iwamoto) captured by British observer Martin Mobberley using a remotely operated telescope in Australia.

There are a wide range of options for remote observing and some of these are described below.

One option is the Sierra Stars Observatory Network (SSON) which has telescopes located in California and Australia. Before using SSON one must register and purchase credits. Observations are scheduled as follows:

- input object data. Comets may be selected from a list

- add project title and observer name

- input data and time (if not input then job will be run at the next opportunity)

- select telescope, filter, number of times to run series, time between series

Emails will be sent to confirm a job and when imaging is complete. Images are then available for download.

It is always worth checking images to see what else might be on them other than the intended target. Another popular facility is iTelescope, This offers the user both the opportunity to schedule images in advance or reserve time slots to take control of the telescope, the latter choice not being available with SSON. iTelescope has a wide selection of telescopes distributed between five sites around the world and operated via an online control panel. Payment is by a monthly subscription which provides a certain number of points which can be carried over into subsequent months.

Like This Article
BAA Articles

Mercury and Venus Section Newsletter

I’m pleased to announce the first issue of ‘Messenger’- the official newsletter of the BAA Mercury and Venus Section!

I hope to make these newsletters on a semi-regular basis with two/three per Venus elongation. The main aim of the newsletter is to share news and observations communicated to the Section by BAA members. The newsletter will also include articles concerning methods and techniques useful for observing the inner planets.

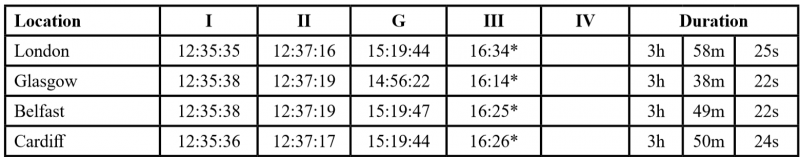

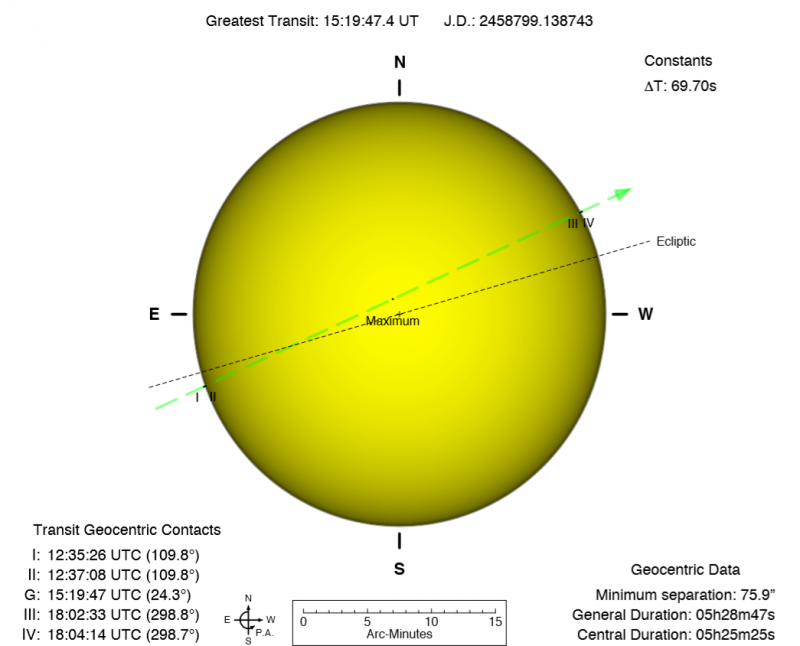

I would like to thank our Mercury Coordinator Chris Hooker for his article on the transit of Mercury coming up in November and Australian observer Anthony Wesley for his article on imaging the nightside of Venus.

Dr. Paul G. Abel,
Department of Physics & Astronomy,
University of Leicester,
University Road,
Leicester UK, LE1 7RH.

Director of the BAA Mercury and Venus Section

Like This Article
BAA Gallery Picture of the Week
Image search

When Comets Pass in the Night


Expand image

About this observation
Simon Edwins
Time of observation
08/09/2019 - 02:20
29x 60s exposures (binned 2x2)
8” F4.5 Orion Optics CT8 reflector
ATIK 460EX Mono Camera
Like This Image

This is a luminance only image of the comets C/2018 N2 (ASASSN) and 260P/McNaught. Simon collected 29 x 60 seconds exposures (binned 2 x 2) using an Atik 460EX at prime focus on an 8” f/4.5 Orion Optics CT8 reflector. Exposures were collected on 8th September 2019 between 02.01 and 02.49 from his home in Bedfordshire, England. Simon comments that to be able to fit two relatively bright comets into the small field of view of his equipment is a rare opportunity indeed.

Copyright of all images and other observations submitted to the BAA remains with the owner of the work. Reproduction of the work by third-parties is expressly forbidden without the consent of the copyright holder. For more information, please contact the webmaster.
BAA Articles

Observer's Challenge – opposition of Neptune

On 10th September 2019, Neptune will come to opposition. The planet will be nearly 29 astronomical units (AU) from Earth, and the other ice giant, Uranus, 19.2 AU from Earth, compared to 9.5 AU for Saturn and 5.2 AU for Jupiter on the same evening; this really puts into context just how far away the ice giants are from Earth. Light from Neptune takes over 4 hours to reach the Earth; the round trip for the light from the Sun to Neptune and back to Earth is well over 8 hours!

Whilst Uranus, at magnitude 5.7, is theoretically visible to the naked eye, Neptune being magnitude 7.8 can only be seen through binoculars or a telescope.

For many amateurs with binoculars or a smaller telescopes, just finding Neptune in the constellation of Aquarius can be a challenge. Some may be able to identify the planet as having a green-blue hue and having a disc-like [non-stellar] appearance.

With larger telescopes (typically over 30 cm in aperture) the hue of the planetary disc will be more evident and the largest of Neptune’s moons, Triton, may be observed if viewing from a dark location with good seeing conditions, yet it is highly unlikely you’ll see any surface detail on the planet.

Amateur astronomers can image Neptune, and this technique can be used to detect surface detail, but again requires good seeing and a lot of patience. Images on the BAA Member Pages show the range of results amateurs can achieve using a range of telescopes, cameras and filters. The recently posted observation by Terry Evans clearly shows Neptune and Triton passing close to the magnitude 4.2 star, Phi Aqr.

Whether you want to hunt down Neptune with binoculars or a small telescope, or set yourself a goal to observe or image its brightest moon, the next few weeks provide a great opportunity to observe the planet. More details and a finder chart can be accessed here.

Please do submit any observations to your BAA Member Page and to the Saturn, Uranus and Neptune Section.
