**** EXoPLanet Orbit REsearch – EXPLORE ****

An (unfinished) GUIDE

Phase curve showing transit and eclipse                                                              Credit ESA

Updated 2022 November 29

Please be aware that this project and this documentation are very much in their early stages and there is much to be done. Volunteers (or rather Explorers) welcome.

Contents

1.0 Introduction
1.1 EXPLORE needs EXPLORERS. Presentation given at Exoplanet Workshop on 2022 November 12
Please do take a look at this section to see how you might help the project
1.2 As seen in the Journal of the British Astronomical Association

2.0       Overview
3.0       Pro-am collaborations
4.0       Project management
5.0       Observing
            5.1       Imaging guidelines
            5.2       Imaging known exoplanets
            5.3       Discovery – target selection
                        5.3.1    Transit Timing and Transit Depth Variations (TTVs and TDVs)
                        5.3.2    Exomoons
                        5.3.3    Synchronous observations
            5.4       Robotic telescopes
6.0       Reporting discoveries
7.0       Database mining and analysis
8.0       Modelling
9.0       Mentoring
10.0     Resources
            10.1     Software
            10.2     Documentation
                        10.2.1  Papers
                        10.2.2  Books
            10.3     Courses

11.0     Meetings
            11.1     Exoplanet online workshop, 2022 November 12 via ZOOM
12.0     Links
13.0     Communication with participants

1.1 EXPLORE needs EXPLORERS. Presentation given at Exoplanet Workshop on 2022 November 12
This presentation suggested a number of Potential Pilot Projects (PPPs);
PPP 1 Detecting secondary transits
PPP 2 Monotransits/duotransits – confirmation of exoplanet discoveries
PPP 3 TTVs/TDVs research which may lead to the discovery of additional exoplanets in known systems
PPP 4 Phase curve photometry
PPP 5 Detecting exomoons
PPP 6 Detecting exocomets

Please review the slides and if anything is of particular interest which you would like to research further please let me know.

1.2      As seen in the Journal of the British Astronomical Association
An edited version of this section appeared in the 2022 November issue of the Journal of the British Astronomical Association

The aims of the EXPLORE project are to build on the Exoplanet Division’s participation in ExoClock by searching for additional objects, e.g., exoplanets, their moons, comets and other interstellar wanderers (Figure 1), and observe secondary eclipses and phase curves of detected and confirmed exoplanets (Figure 2). It offers a growth path for experienced observers to verify that such observations are within the capabilities of amateur observers whilst newcomers can cut their teeth supporting ExoClock by observing transits before moving on to the more challenging photometry.

Practical and theoretical objectives necessary to achieve the aim of this project are;
Practical;
            – contributing to the ExoClock programme by observing transits of known exoplanets
            – searching for additional objects as mentioned above by imaging
              the host star while the known exoplanet is not transiting (out-of-transit)
            – seeking opportunities for amateurs to use robotic telescopes such as the Europlanet
              Telescope Network

Theoretical:
            – searching online databases for indications, e.g. Transit Timing Variations (TTVs),
              of additional exoplanets
            – modelling exoplanet/exomoon transits

A one-day online meeting was held on 2022 November 12, and videos are available on YouTube.

Figure 1. Artist’s impression of the exomoon candidate Kepler-1625b-i which, if confirmed, will be the first moon to be found outside the Solar System. Credit: NASA, ESA, and L. Hustak (STScI)

Figure 1. Artist’s impression of the exomoon candidate Kepler-1625b-i which, if confirmed, will be the first moon to be found outside the Solar System. Credit: NASA, ESA, and L. Hustak (STScI)

Figure 2. Phase curve showing primary and secondary (eclipse) transits              Credit ESA

Figure 2. Phase curve showing primary and secondary (eclipse) transits              Credit ESA

Two space missions relevant to this project are ARIEL and CHEOPS
ARIEL, Atmospheric Remote-sensing Infrared Exoplanet Large-survey satellite. The objectives of which are;
– determining the composition and structure of exoplanetary atmospheres
– identifying the different populations of planets and their atmospheres
– understanding how host stars affect their exoplanetary systems
The Exoplanet Division is already involved in ARIEL via the ExoClock project and members have contributed numerous transit observations (Figure 3) which have been included in two papers while a third has been submitted for publication. The observations are necessary to ensure that the spacecraft, when launched in 2029 will be pointing at the right target at the right time – observations have already shown that a number of ephemerides need updating.

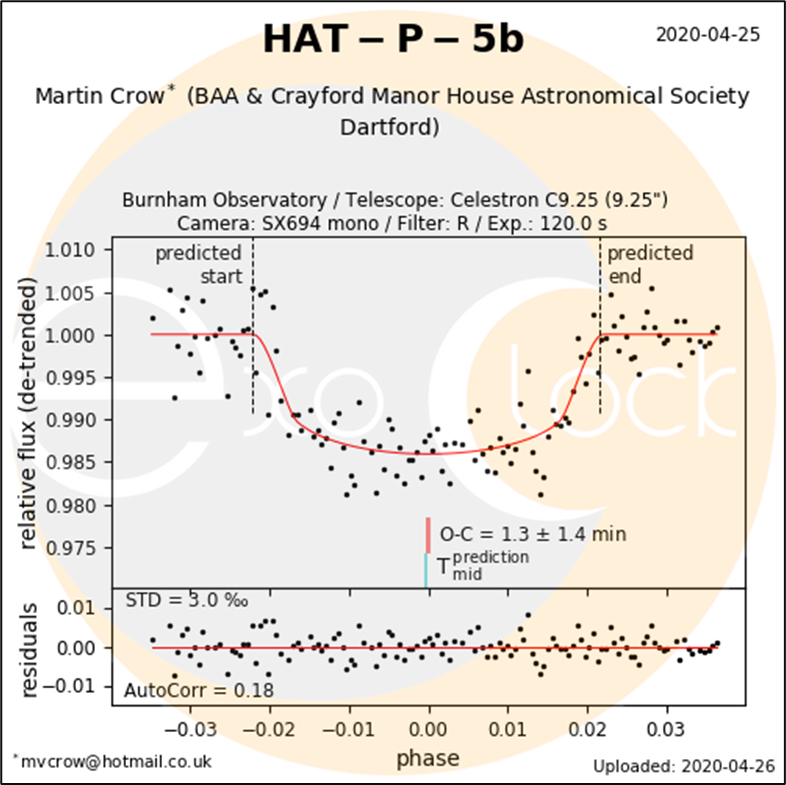

         Figure 3. Transit light-curve from the ExoClock database.  Credit: Martin Crowe

Figure 3. Transit light-curve from the ExoClock database.  Credit: Martin Crowe

CHEOPS, Characterising ExOPlanet Satellites. It will be the first mission dedicated to search for transits by means of ultrahigh precision photometry on bright stars already known to host planets. We are exploring opportunities for amateur involvement in this project. There are two possible routes;
– write a proposal and apply for time.  Definitely more than a little daunting but we have
  nothing to lose.
– look in the CHEOPS ESA archive and examine the data much of which has not been
  examined in detail.


On September 12, 1962 the late President Kennedy said ‘We choose to go to the Moon in this decade and do the other things, not because they are easy, but because they are hard’.

Apollo 11 Lunar Lander                                                                 Credit NASA

It will be hard to ‘go to’ exomoons and additional exoplanets and we will definitely be ‘pushing the envelope’, as those early astronauts were fond of saying, but it is a challenge I ask you to accept and, by doing so, expand the capabilities of amateur astronomers.

2.0       Overview

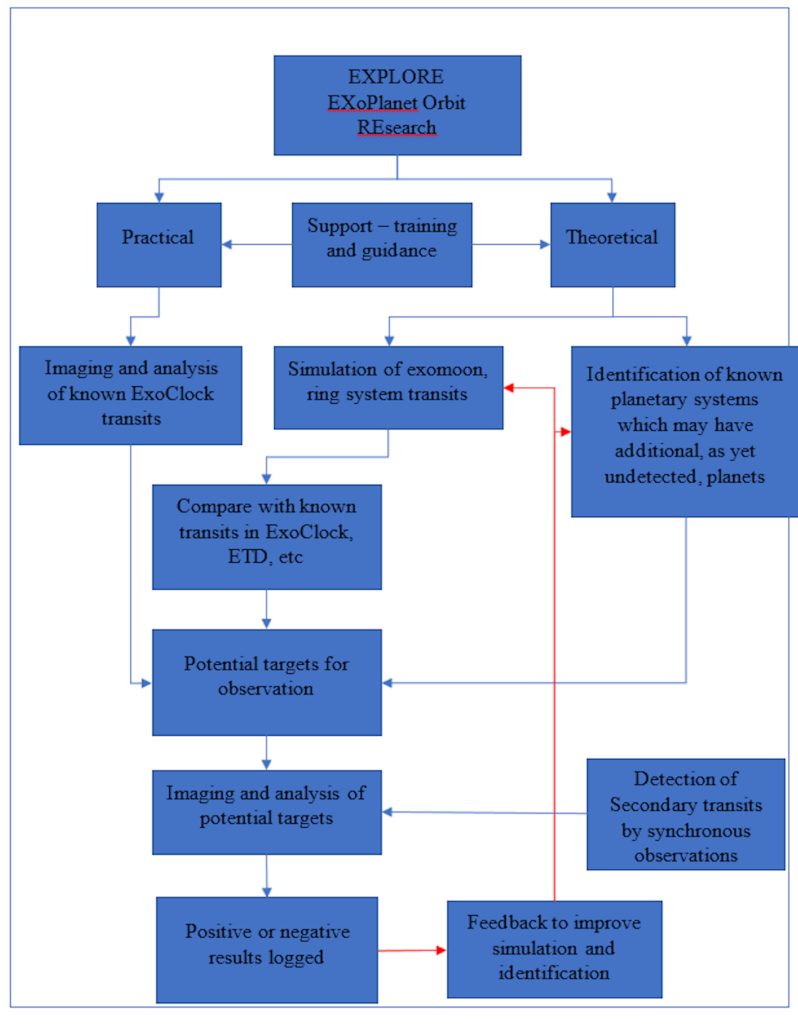

Figure 2.1 shows how the various activities link together.

3.0       Pro-am collaborations
ARIEL, Atmospheric Remote-sensing Infrared Exoplanet Large-survey satellite. The objectives of which are;
– determining the composition and structure of exoplanetary atmospheres
– identifying the different populations of planets and their atmospheres
– understanding how host stars affect their exoplanetary systems
The Exoplanet Division is already involved in ARIEL via the ExoClock project and members have contributed numerous transit observations (Figure 3) which have been included in two papers while a third has been submitted for publication. The observations are necessary to ensure that the spacecraft, when launched in 2029 will be pointing at the right target at the right time – observations have already shown that a number of ephemerides need updating.

CHEOPS, Characterising ExOPlanet Satellite. It will be the first mission dedicated to search for transits by means of ultrahigh precision photometry on bright stars already known to host planets. We are exploring opportunities for amateur involvement in this project. There are two possible routes;
– write a proposal and apply for time.  Definitely more than a little daunting but we have
   nothing to lose. Guest Observers Program is at https://www.cosmos.esa.int/web/cheops-guest-observers-programme/proposal-templates


– look in the CHEOPS archive and examine the data much of which has not been
  examined in detail.

4.0       Project management
– define and prioritise initial and longer-term activities as we shouldn’t attempt too much too
  soon
– arrange a coordinator for each activity or group of activities
– choose one or two that are likely to lead to an initial success
            – possibly synchronous obs for secondary transit/eclipses and detecting other objects.
            – can possibly coordinate with/learn from ExoClock Working Group and Siegfried
              Vanaverbeke
            – see ‘A survey of exoplanet phase curves with Ariel at

https://link.springer.com/article/10.1007/s10686-021-09715-x
– arrange regular meetings (and reports on Exoplanet website) to progress activities


5.0       Observing

Note; Specific targets and observing schedules to be defined

5.1       Imaging guidelines
Instrument – 8”/25 cm reflector or larger plus CCD camera
The following guidelines are suggested to increase the chances of a successful imaging run;
– clear dark skies – even hazy cloud will affect magnitude measurements
– not too windy (< 30 mph)
– not around time of full Moon or too close to Moon > 60 arcmin
– altitude – 30° above horizon throughout whole transit
– use an exposure time / binning to get a good signal to noise ratio (SNR) >600 – at least half
  well depth
– filter. Red preferred but try unfiltered for small telescopes and/or improved SNR
 -carry out a dry run on the star to be observed well in advance of the predicted time.
  of transit. Use this to determine the exposure time to reach a desirable SNR. A photometric
  accuracy of x millimags requires a SNR of 1000/x (an approximation but a very good one).
  Ideally one should aim for an accuracy of around a tenth of the transit depth but even an
  accuracy of, say, a half, can give useful measurements, especially when pooled with those of
  other observers (see Synchronous observations, section 3.3.1)

5.2       Imaging known exoplanets
The ExoClock projectoffers an opportunity to participate in a project related to the ARIEL space mission. A number of BAA members are already involved and this offers a good entry point for those new to this activity. A full description of the project can be found here.

5.3       Discovery – target selection
Described here are various ways of selecting targets with known exoplanets that might yield additional objects.

5.3.1    Transit Timing and Transit Depth Variations (TTVs and TDVs)
Such variations may indicate the presence of an additional planet or planets in the system or of orbital decay. Figure 3.1 is an example of Transit Timing Variations.

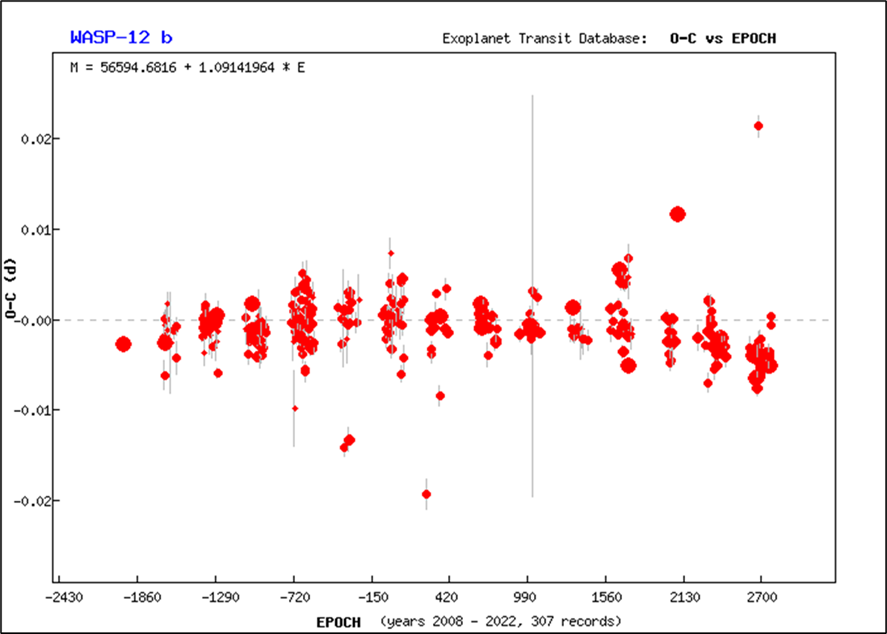

    Figure 5.1. Transit timings of WASP-12b showing variation                           Credit ETD

Transit timing en masse This website provides results from the article titled “TESS Transit Timing of Hundreds of Hot Jupiters”. It provides a database of transit times and updated ephemerides for 382 planets based on data from the NASA Transiting Exoplanet Survey Satellite (TESS) and previously reported transit times which were scraped from the literature in a semi-automated fashion. In total, our database contains 8,667 transit timing measurements for 382 systems. The new ephemerides are useful for scheduling follow-up observations and searching for long-term period changes. WASP-12 remains the only system for which a period change is securely detected.

5.3.2    Exomoons
A target list for searching for habitable exomoons A useful target selection tool. Although well down the list in Table 1 Kepler 16(AB)b looks quite interesting as it is a planet around an eclipsing binary star. The Exoplanet Encyclopaedia http://exoplanet.eu/catalog/kepler-16_(ab)_b/ has it at RA 19:16:18.0 and Dec +51:45:27 which makes it circumpolar from the UK plus it has an inclination of 90 degrees. ExoClock lists it as a High Priority target https://www.exoclock.space/database/planets/Kepler-16b/ There is only one planet listed in the system but the fact that it is a binary system could make for some interesting transits.

Relevant papers;
An exomoon survey of 70 cool giant exoplanets and the new candidate Kepler-1708 b-i. by Kipping and others,
Transit Light-curves for Exomoons: Analytical Formalism by S Saha and S Sengupta

5.3.3    Synchronous observations
Shallow primary transits and secondary transits/eclipses will require the summation of coordinated synchronous observations.

Coordination with the ExoClock Working Group may be a possibility see A survey of exoplanet phase curves with Ariel

Siegfried Vanaverbeke  siegfriedvanaverbeke@gmail.com suggests coordination between his observers and BAA members

5.4       Robotic telescopes
For those without their own equipment there are several possibilities to explore;
For example;
Liverpool Telescope
iTelescope
Europlanet Telescope Network
MicroObservatory Robotic Telescope Network

6.0       Reporting discoveries
There is no facility that I can find for identifying potential/confirmed exoplanet discoveries. Therefore, we do need a vehicle for flagging up potential exoplanets so that others can confirm, or not as the case may be, that the discovery is real and not, for example, an eclipsing binary. One possibility is to use The Astronomer’s Telegram website at http://www.astronomerstelegram.org/ The editors have been contacted but no reply has been forthcoming.

What needs to be reported also needs defining but a minimum might be;

– host star name

– newly discovered planet name which would be host star plus next letter after existing
  planets e.g., Kepler-9 e as b, c and d are known

– transit data; mid-time and duration

7.0       Database mining and analysis

Note; What can be done to be explored

Databases are listed below.
CHEOPS archiveExoClock            ExoClock(Select Database and choose option)
            ExoClock Data Release B – October 2021
            ExoClock Data Release C
Exoplanet Transit Database (ETD)
Next Generation Transit Survey (NGTS)
            Second data release
            Planet Hunters NGTS
Planet Hunters TESS            Exoplanet Division tutorial
            Planet Hunters Tess website
Zooniverse SuperWASP Variable Stars

8.0       Modelling

Note; Examples and methods to be added. Possibly subject of a future meeting

9.0       Mentoring
Those new to CCD photometry and astrometry may need some help as may those more experienced observers participating in some of the more complex projects mentioned in this document. The BAA Variable Stars Section runs a mentoring scheme so we should be able to learn from their experience.

10.0     Resources
10.1     Software
AstroImageJ Tutorials (old level – new in test) are available here

Python based Solar System model to be made available by Rodney Buckland

10.2     Documentation
10.2.1 Papers
Pandora: A fast open-source exomoon transit detection algorithm by M Hippke and R Heller
Transit model of planets with moon and ring systems by L R M Tusnski and A Valio
TESS Transit Timing of Hundreds of Hot Jupiters by E S Ivshina and J N Winn
Self-organising Systems in Planetary Physics: Harmonic Resonances of Planet and Moon Orbits by M J Aschwanden
Applying Titius-Bode Law on Exoplanetary Systems by M B Altaie, Z Taiai and A I Al-Sharif
A survey of exoplanet phase curves with Ariel by B Charnay and others

10.2.2  Books
Transiting Exoplanetsby Carole A Haswell
Exoplanet Observing for Amateurs, Second Edition by Bruce Gary. book, (Second Edition) pdf, (First Edition), download (Second Edition)

10.3     Courses
Exoplanet research at the Open University
An introduction to exoplanets (Open University)
S382 Astrophysics (Open University)
Exoplanets and planetary physics
More courses are listed on the links page of the Exoplanet

11.0     Meetings
            11.1     Exoplanet on-line workshop, 2022 November 12 via ZOOM

Asteroid and Remote Planets Section
Exoplanet Division
EXPLORE – ExoPLanet Orbit REsearch
An Introduction to the Project

Links to presentations on the BAA YouTube channel are included

9:30                Zoom meeting opens

10:00-10:30  Introduction by Roger Dymock – https://youtu.be/RDfCe26Cad0

Exoplanet Division update
EXPLORE introduction

10:30-11:15  Ariel and ExoClock with Anastasia Kokori – https://youtu.be/xBMxSdLUO6k

Mission and observational efficiency
ExoClock – a model of pro-am collaboration

11:15-11:30  Break

11:30-12:15  EXPLORE Part 1 – Detecting exoplanets with Rodney Buckland – https://youtu.be/WAsN16-c0JQ

Observation
Modelling
Searching databases
Zooniverse

12:15-12:45 How to discover an exoplanet (telescope and camera not required) with Roger Dymock – https://youtu.be/8iwZ5SEyW-o

12:45-13:30  Lunch break

13:30-14:15  EXPLORE Part 2 with Martin Crow – https://youtu.be/ys8c7gSGxS4

Introduction to HOPS
Synchronous observations to detect shallow transits
Data mining transit observations for variable star photometry

14:15- 15:00  AstroImageJ with Richard Lee – https://youtu.be/_ylX0Ntmzws

An alternative to HOPS

Click to download a zip of the User Guide for the Observation Planner for AstroImageJ and sample files.

15:00-15:15  Break

15:15-15:45  Observing with robotic telescopes by Rodney Buckland – https://youtu.be/w9ekaQ7iJDA

15:45-16:00  EXPLORE NEEDS EXPLORERS with Roger Dymock – https://youtu.be/WJQOLyqMi0I

16:00-16:30  Q&A with Roger Dymock, Rodney Buckland and Martin Crow

16:30             Close

12.0     Links

Exoplanets – Challenging Objects for Citizen Science. A presentation by Pieter Vuylsteke

Pandora: A fast open-source exomoon transit detection algorithm. Michael Hippke and René

Heller https://arxiv.org/pdf/2205.09410.pdf

Relevant paper here for the search for additional planets https://ui.adsabs.harvard.edu/abs/2019AAS…23346715H/abstract#:~:text=Barnes’%20and%20Raymond’s%20Packed%20Planetary,that%20cannot%20contain%20additional%20planets
            – https://arxiv.org/pdf/2011.03053.pdf

Example of a circumbinary exoplanet – Kepler 451 https://en.wikipedia.org/wiki/Kepler-451b

Software to search the entire field for transcient objects in python – vast-automation https://github.com/mrosseel/vast-automation

TTVFast efficiently calculates transit times for n-planet systems and the corresponding radial velocities https://github.com/kdeck/TTVFast

ExoClock
– Ariel ExoClock pro-am project https://britastro.org/section_information_/exoplanets-section-overview/ariel-exoclock-pro-am-project
– The ExoClock project https://www.exoclock.space/project
– ExoWorld Spies https://www.exoworldsspies.com/en/
– remote observing https://www.exoclock.space/remote_observing

MonoTools: a python package for planets of uncertain period https://pypi.org/project/MonoTools/

Single Transit Candidates from K2: Detection and Period Estimation – https://arxiv.org/pdf/1512.03722.pdf

Hugh Osborn’s Monotransits website – https://hposborn.github.io/about.html

Amy Tuson’s website (search for long-period exoplanets) – https://amytuson.wordpress.com/

Mean motion resonances in exoplanet systems – https://arxiv.org/pdf/1211.3078.pdf

Six transiting planets and a chain of Laplace resonances in TOI-178 – https://www.aanda.org/articles/aa/full_html/2021/05/aa39767-20/aa39767-20.html
CHaracterising ExOplanet Satellite (CHEOPS) https://cheops.unibe.ch/
– CHEOPS observations of TESS primary mission monotransits
https://academic.oup.com/mnras/article/494/1/736/5809375

Kepler and K2 https://www.nasa.gov/mission_pages/kepler/main/index.html

Transiting Exoplanet Survey Satellite (TESS) https://www.nasa.gov/tess-transiting-exoplanet-survey-satellite

Transit timing and duration variations…; https://arxiv.org/pdf/1706.09849.pdf

Transit duration variations in multi planet systems; https://arxiv.org/pdf/2003.11590.pdf

The Apparently Decaying Orbit of WASP-12; https://arxiv.org/abs/1703.06582

Exoplanet Transit Database; http://var2.astro.cz/ETD/archive.php

Extrasolar Planets Encyclopaedia, Planet TrES-1b – http://exoplanet.eu/catalog/tres-1_b/
– several papers relating to Transit Timing Variations are listed

Exomoon indicators in high-precision transit light curves;                https://arxiv.org/pdf/2004.02259.pdf

Transit light curves for exomoons…
           https://iopscience.iop.org/article/10.3847/1538-4357/ac85a9/pdf

Planet Hunters NGTS. See https://britastro.org/section_information_/exoplanets-section-overview/web-links under Citizen science and Amateur Astronomy projects

Planet Hunters TESS. See https://britastro.org/section_information_/exoplanets-section-overview/web-links  under Citizen science and Amateur Astronomy projects

Courses. See https://britastro.org/section_information_/exoplanets-section-overview/web-links   under Education

13.0     Communication with participants
Monthly email with brief notes and pointers to relevant pages on Exoplanet website (to be added)

Roger Dymock
ARPS Assistant Director Exoplanets

The British Astronomical Association supports amateur astronomers around the UK and the rest of the world. Find out more about the BAA or join us.
